FMUSER FMT-600T FSN-600T 600W FM Transmitter for Radio Broadcast Radio Stations support RDS Completed kit with Dipole FM Antenna

R: V20190823-15-18 Data sheet   User Manual

Price(USD) Qty(PCS) Shipping(USD) Total(USD) Shipping Method Payment
2669 1 0 2669 DHL,EMS,FEDEX IE
2350 2 0 4700 DHL,EMS,FEDEX IE




1) OVERHEAT PROTECTION: The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range. 2) OVER SWR PROTECTION: SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile. 3) FAN ERROR ALARM When the fan stopped running, there will be alarming message showing on the screen like the following: 4) MODULATION ADJUSTABLE: When audio mixers are connected with the 600w FM transmitter through the XLR Balanced audio input interface, the transmitter will provide plenty of options for the modulation to best match with the mixer.


This V5.0 600w FM transmitter is designed with a precisely sensitive touch screen in replace of the control buttons on previous transmitters. With all information displayed clearly on the screen, users can control and configure all parameters very easily.


RF Part: Frequency: 87.5-108MHz, Frequency step value: 10KHz Modulation: FM, peak deviation ± 75KHz Frequency stability: <± 100Hz Frequency stabilization method: PLL frequency synthesizer RF output power: 0~600 watts ± 0.5dB Residual wave: <- 70dB Higher harmonics: <- 65dB Parasitic AM: <- 50dB RF output impedance: 50Ω RF output connector: L29 female Audio Part: Audio input connector: XLR female AUX input connector: BNC female Pre-emphasis: 0us, 50us, 75us (user setting) S / N ratio mono:> 70 dB (20 to 20KHz) S / N ratio stereo:> 65 dB (20 to 15KHz) Stereo resolution: -50dB Audio frequency response: 30 ~ 15000Hz Audio distortion: <0.3% Audio level gain: -12dB ~ 12dB step 3dB Audio input: -19dB ~ 5dB General Features: Power supply voltage range: 110V ~ 260V Operating temperature range: -10 to 45 ℃ Work mode: continuous work Cooling method: air cooling Cooling efficiency: <95% Work Altitude: <4500M Power consumption: 1500VA Dimensions: 483 x 320 x 88 mm without handles and protrusions, 19 "2U standard rack. Weight: 15Kg

Support RDS encoder

The 5.0 FM Transmitter can support to connect the RDS encoder. It has RDS connector .


Q: What's the freqency of this 600w fm transmitter?

A: The frquency is 87~108MHz to broadcast.

Q: Is it enough to 600watts power?

A: Yes, of course it is engouh. We test the products before shipping.

Q: How far does it cover?

A: That will according to your antenna and where will you use the transmitter. We tested it wih our dipole antenna in the open air. And found that it can cover 20-25KM.

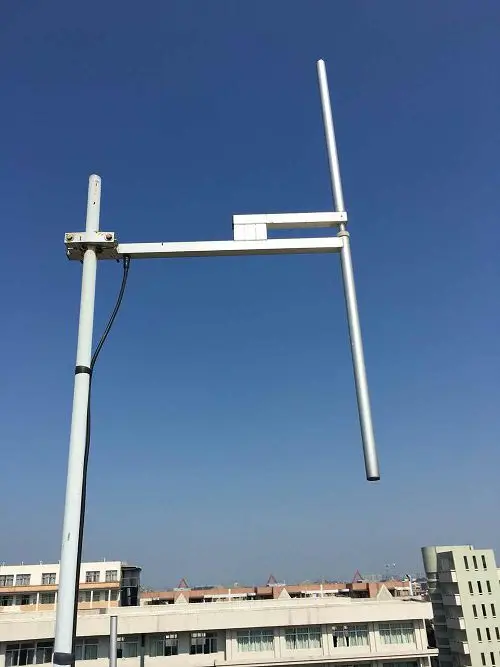

General Data: Frequeny Range:87.5-108mhz Impedance: 50Ohm Connector: EIA flange according to system power rating VSWR: <=1.3:1 MAX Polarization: Vertical Gain: according to requirement Horizaontal Pattern: Any type according to the customer requirement Vertical Pattern: Null fill, beam tilt and special requirements on demand Other Facilities: The antenna system can be supplied in split feed with two equal half antennans, each half can accept full power Mechanical Data: Dimensioins: 1400*900*50mm Weight: 5kg with hard ware mounting Wind surface:0.05m2 Wind load: 9.8kg(wind speed at 160km/h-without radome) Max wind velocity: 220km/h Materials: External parts: Aluminium anticorodal Internal parts:brass Heigh of array: Subject to number of bays(refer to table) Package Volume weight: 11kg Packig Size: 86*88*7cm Pressurizzable: Yes(on demand) Radome colour: white(optional) Mounting hardware: hot dip galvanized steel clamps Shipping: as required

What is Included :

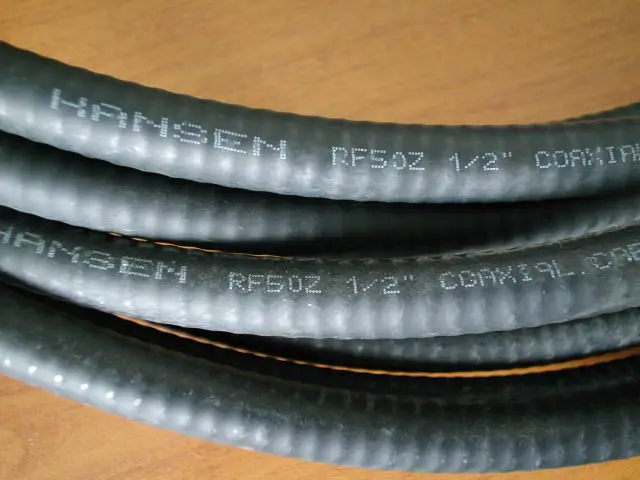

600w fm transmitter + Power Adapter Cable+ FU-DV2 Antenna+ 30meters RF Cable

We have completed kit of FM Radio Broadcast Station to Sell.

Brand Story :

FMUSER International Group INC. is a modern high-tech manufacturer specializing in designing, engineering, manufacturing and marketing of high quality FM/TV transmitters and related accessories. With over 9 years of experience in the field of FM/TV broadcasting, we won great reputation by our high quality products at very competitive price and excellent service. We’ve done business with customers from over 100 countries and regions all over the world. Currently our biggest market is in American countries, European countries and African countries. Meanwhile we look forward to expand our business and would like to have distributors in other areas too.
